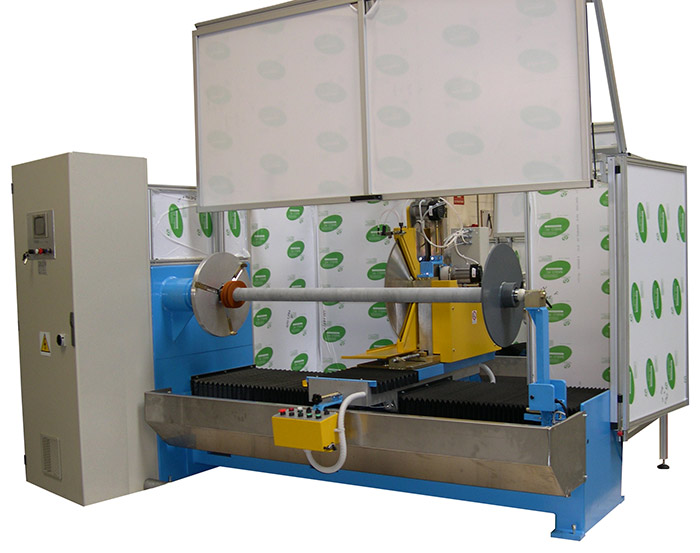

Lathe Slitters | Single Shaft

All models have the following features:

• Fully automatic machine

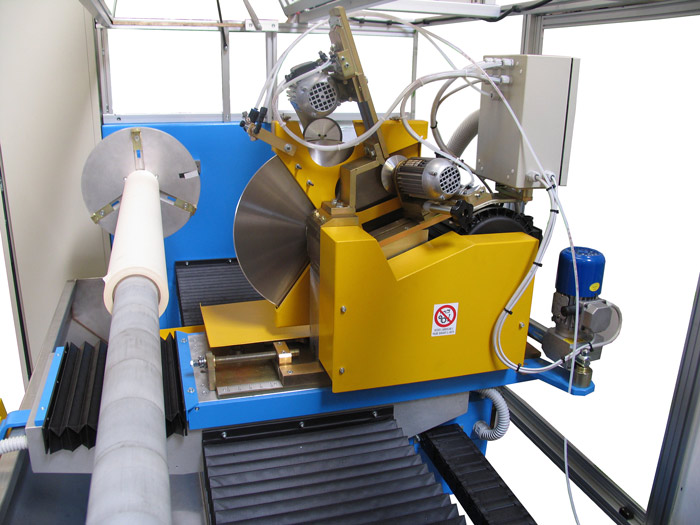

• Cutting system with rotare blade
• Electronic microprocessor for the presetting and control of machine working cycle
• Microprocessor preset control and display of cutting width, material rotational and blade rotational speed (all parameters are variable)
• Proportional blade penetration
• Automatic blade positioning
• Double blade sharpening system
• Automatic acquisition of log and blade diameter
• Blade lubrication and cooling system

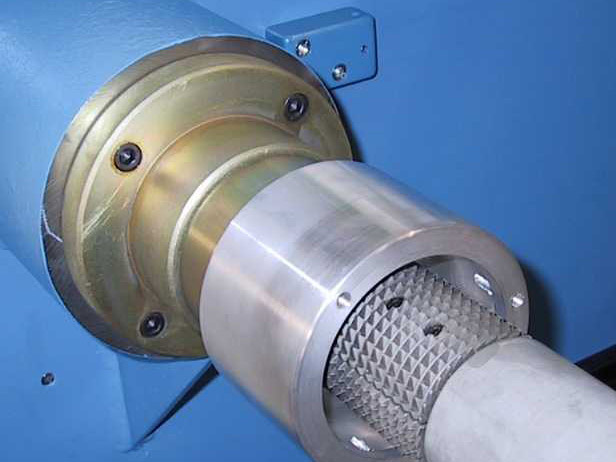

• Fixed or rotare shafts from 1 in. to 3 in. diameter

Optionals

• 8 in. and 10 in. touch screen available
• Slitting head with saw blade

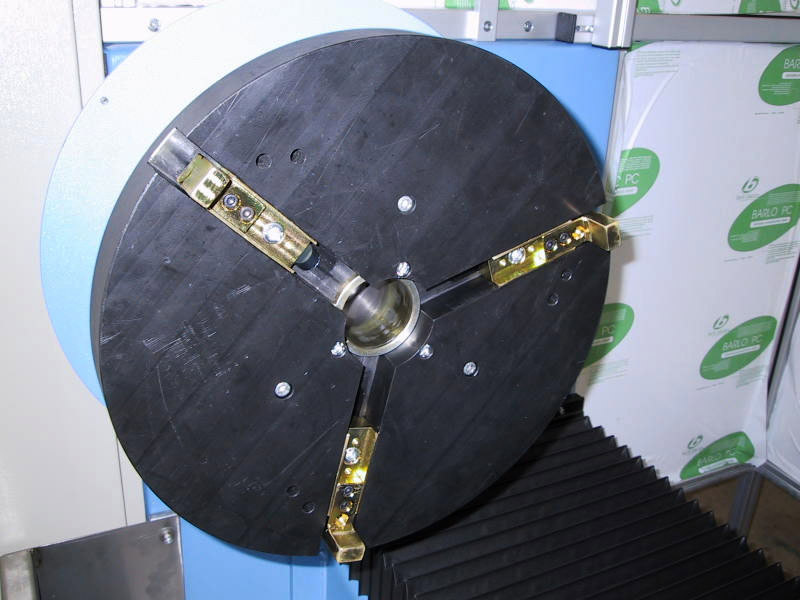

• External core/material gripping unit
• Automatic adjustable blade axis angle
• Front guard auotmatic opening/closing

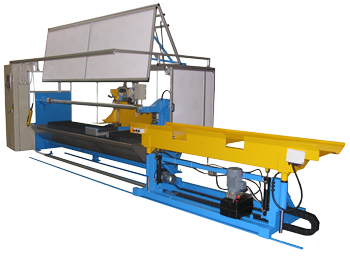

• Load/unload trolley

Special applications available.

Model F300

Technical features:

Maximum material width		1600mm standard
Maximum logs diameter with 350mm OD blade:		300mm
Cutting width		1÷ 1600 mm
Cutting tolerance		± 0,1 mm
Blade speed range		0-800 rpm
Material speed range		0-1000 rpm
Standard shaft		3"

Model Entry Level, suitable for small sizes logs.

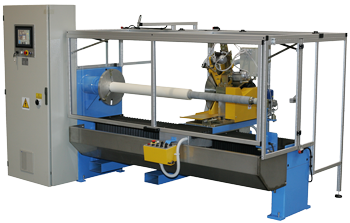

Model F400

Technical features:

Maximum material width		1650mm standard
Maximum logs diameter with 450mm OD blade:		400mm
Cutting width		1÷ 1600 mm
Cutting tolerance		± 0,1 mm
Blade speed range		0-1000 rpm
Material speed range		0-1000 rpm
Standard shaft		3"

Machine suitable for middle sizes logs, up to 400mm OD.

Model F600

Technical features:

Maximum material width		1600mm standard
Maximum logs diameter with 700mm OD blade:		600mm
Cutting width		3÷ 1600 mm
Cutting tolerance		± 0,1 mm
Blade speed range		0-1200 rpm
Material speed range		0-1200 rpm
Standard shaft		3"

Machine suitable for logs up to 600mm OD.

Model F720

Technical features:

Maximum material width		1600mm standard
Maximum logs diameter with 850mm OD blade:		700mm
Cutting width		3÷ 1600 mm
Cutting tolerance		± 0,1 mm
Blade speed range		0-500 rpm
Material speed range		0-500 rpm
Standard shaft		3"

Machine suitable for big sizes logs, up to 720mm OD.
